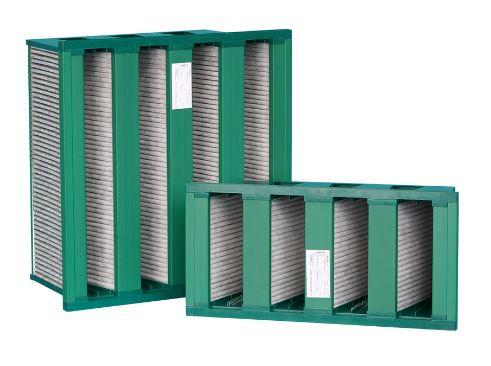

Compact filter with active carbon + synthetic media
Number: CO ACP7-66-RPC
Kundeservice
Mai Kaas-Hansen
Robust compact filters with activated carbon
| Number | CO ACP7-66-RPC |
| Name | Compact filter with active carbon + synthetic media |
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Good adsorption capacity
Contributes to clean and safe work areas and living spaces
Sealing of the harmful substances in the filter
No release of carbon into the air stream from the filter
Relatively low pressure drop
Product description
CO-ACP-RPC filters are compact filters with activated carbon and synthetic filter media with ISO ePM1 50%/F7 efficiency on the outlet side (dust side).
This type of filter is used in public and industrial systems where there is a lower concentration of harmful gases (VOC).
Specifications
| Applications | Industrial and process ventilation , Molecular filtration |
| Width | 595 mm |
| Height | 595 mm |
| Depth | 292 mm |
| Filterklasse | ISO 16890: ePM1 50% (EN 779: F7) |
| Filter media | Synthetic with activated carbon |
| Filter frame | PS-plastic (Polystyrene) |
| AirFlow [m³/t] | 3400 |
| Initial pressure drop [Pa] | 120 |
| Relative humidity [%] | 60 |
| Operating temperature max. [C°] | 40 |
