Panel filter with activated carbon
Number: PAACG-28759250
Kundeservice
Mai Kaas-Hansen
Panel filter for harmful gases and odors
| Number | PAACG-28759250 |
| Name | Panel filter with activated carbon |
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
2 in 1 filter for dust and odor
Flat, compact and robust
Optimal combination of low pressure drop and high adsorption capacity
Product description

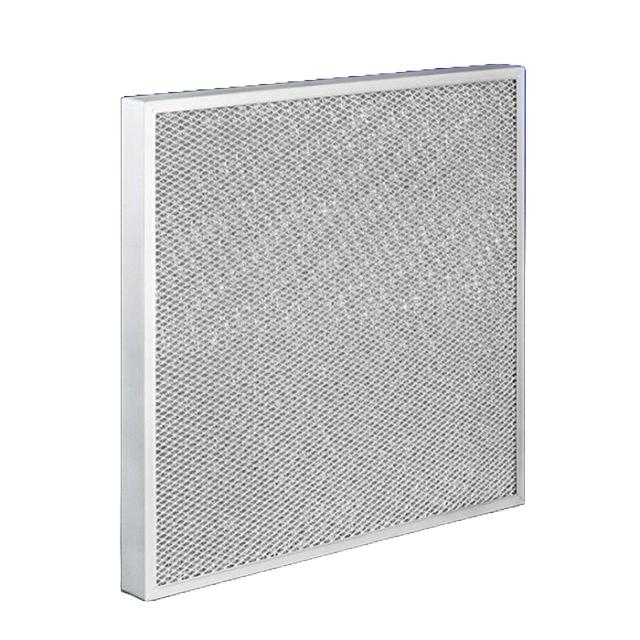

Panel filter with 4-layer filter medium. One layer to capture coarse dust particles, 2 layers of activated carbon, and a final layer on the clean side to protect the filter. A metal grid on both sides provides extra protection.
Specifications
| Applications | Industrial and process ventilation , Molecular filtration |
| Width | 287 mm |
| Height | 592 mm |
| Depth | 50 mm |
| Filter media | Synthetic with activated carbon |
| Filter frame | Galvanized steel |
| AirFlow [m³/t] | 200 |
| Initial pressure drop [Pa] | 15 |
| Final pressure drop recommended | 150 |
| Relative humidity [%] | 70 |
| Operating temperature max. [C°] | 60 |
