Filter cartridge ø325x1320mm Gram

Number: PFCJ325/1320/909AL/26S

Kundeservice

Mai Kaas-Hansen

Number	PFCJ325/1320/909AL/26S
Name	Filter cartridge ø325x1320mm Gram

Classification list

Add to cart and request a quote to get a price.

You have to log in to see our prices and to make purchases in the webshop.

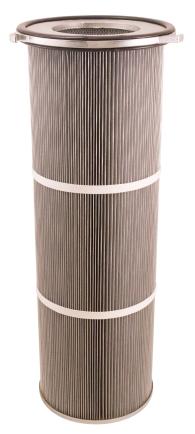

Filter cartridge ø325x1320mm.
The filter media is antistatic.
With aluminum flange, 3 tabs.
13mm hole in the bottom.

Applications	Industrial and process ventilation
Diameter	325 mm
Length	1320 mm
Filter media	Polyester
Pleat height [mm]	48
Effective filter area [m²]	26
Indre materiale	Galvaniseret strækmetal (mesh)
Cap type top	Open
Materiale top	Aluminium
Gasket material top	Foam
Cap type bottom	Closed with a bolt hole (13 mm)
Materiale bund	Galvaniseret stål
Operating temperature max. [C°]	80
