Filter mat ISO Coarse 90%/M5, 1x20mtr.
Number: C3-300/1
Kundeservice
Mai Kaas-Hansen
100% synthetic and thermally bonded filter media.
| Number | C3-300/1 |
| Name | Filter mat ISO Coarse 90%/M5, 1x20mtr. |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Stiff and strong filter media – ideal for many applications
Classified and quality tested according to ISO 16890
Resistant to evaporated solvents
Fire retardant - safe use cf. DIN 53438

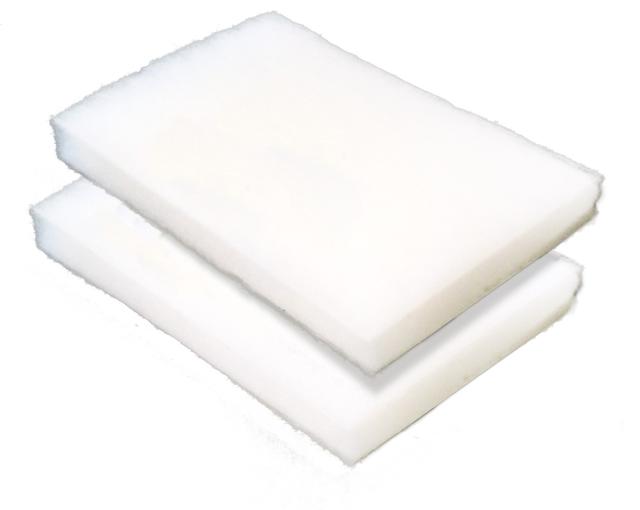

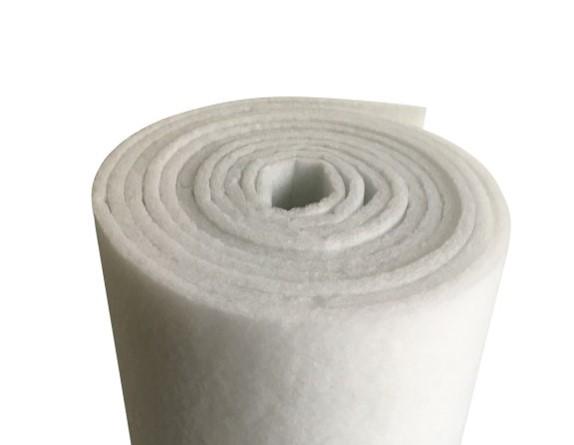

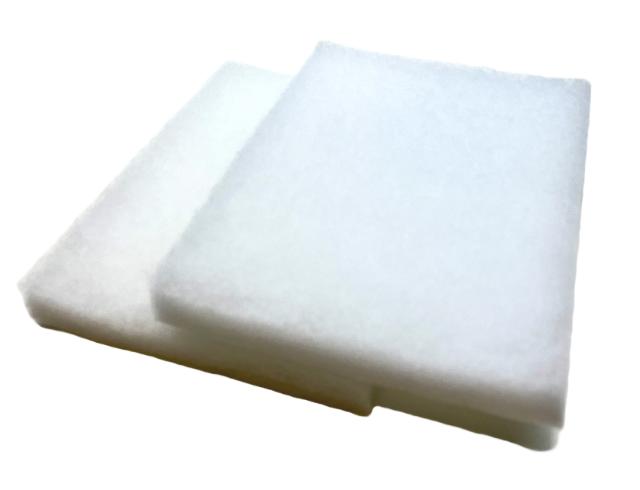

Supplied as rolls or mats in many sizes
Product description
Multi-layered. synthetic filter medium that helps protect sensitive equipment, for example in laboratories, medical facilities and hospitals. In multi-stage filtration solutions, the filter medium functions effectively as a pre-filter. It is also used as a ceiling filter in industrial production and paint booths.
Specifications
| Width | 1000 mm |
| Length | 20000 mm |
| Thickness | 18 mm |
| Filterklasse | ISO 16890: Coarse 90% (EN 779: G4/M5) |
| Filter media | Synthetic |
| Final pressure drop recommended | 450 |
| Relative humidity [%] | 100 |
| Operating temperature max. [C°] | 100 |
| Max. temperature short peaks [C°] | 120 |
| AirFlow [m³/t] | 900 |
| Initial pressure drop [Pa] | 56 |
| Støvkapacitet [g/m²] | 350 g/stk. |
