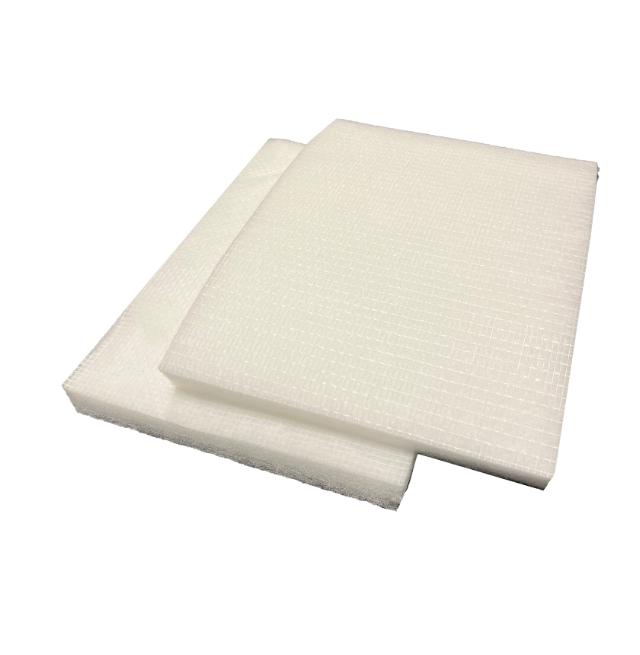

Filter mat ISO ePM10 55%/M5, 1x20 m
Number: FF-560G/1
Kundeservice
Mai Kaas-Hansen
High-quality ceiling and diffusion medium
| Number | FF-560G/1 |
| Name | Filter mat ISO ePM10 55%/M5, 1x20 m |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Effective filtration barrier against paint particles
Tested and quality assured according to ISO 16890
High temperature resistance – up to 180°C
F1-classified according to European fire standard DIN 53438
Product description
Fine filter media made of synthetic fibers for air filtration + effectively removes harmful paint particles from the air. It is specially designed for surface treatment and paint spray installation in the ceiling. The filter medium FF-560 is resistant to solvents and manufactured in a 100% silicone-free environment.
Specifications
| Applications | Industrial and process ventilation |
| Width | 1000 mm |
| Length | 20000 mm |
| Thickness | 22 mm |
| Filterklasse | ISO 16890: ePM10 50% (EN 779: M5/M6) |
| Filter media | Synthetic |
| Brandklassificering jf. DIN 53438 | F1 |
| Final pressure drop recommended | 450 |
| Relative humidity [%] | 100 |
| Operating temperature max. [C°] | 180 |
| Max. temperature short peaks [C°] | 100 |
| AirFlow [m³/t] | 900 |
| Humidity max. [%] | 100 |
| Initial pressure drop [Pa] | 250 |
