Panel filter ISO Coarse 60%/G4, 200x200x48 mm, HT270
Number: PAG4 882350
Kundeservice
Mai Kaas-Hansen
Effective pre-filtration at high temperature
| Number | PAG4 882350 |
| Name | Panel filter ISO Coarse 60%/G4, 200x200x48 mm, HT270 |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Ideal solution for pre-filtration in high temperature environments
Large filtering surface
High dust absorption capacity
Product description

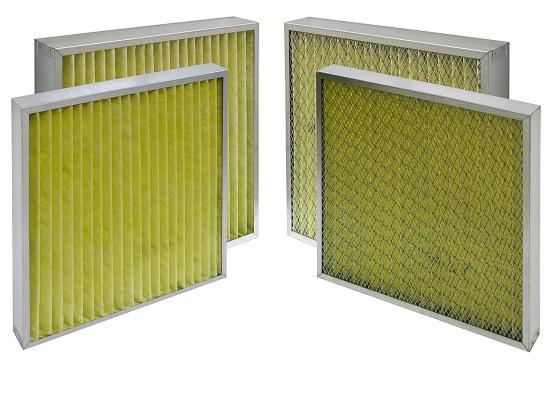

PA-HT filters are used in filtration processes that require high temperature resistance. The filters are an effective solution for pre-filtration when the temperature is high, such as in the automotive industry and at material suppliers.
Specifications
| Applications | Industrial and process ventilation , High temperature |
| Width | 200 mm |
| Height | 200 mm |
| Depth | 48 mm |
| Filterklasse | ISO 16890: Coarse 60% (EN 779: G3/G4) |
| Filter media | Fiberglass |
| Filter frame | Galvanized steel |
| Protection grids | Galvanized steel |
| Grid position | Outlet (clean) side |
| Final pressure drop recommended | 450 |
| Operating temperature max. [C°] | 270 |
