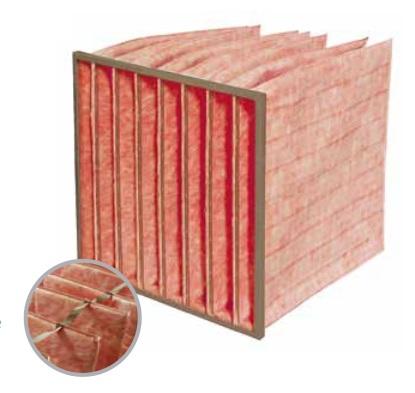

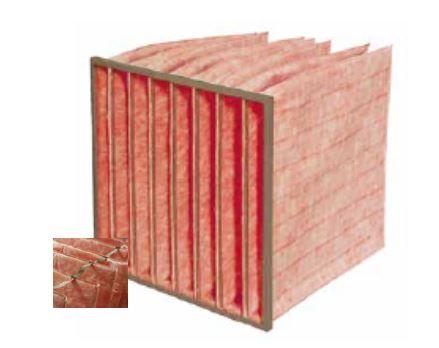

Pocket filter ISO ePM10 50%/M5, 592x592x500 mm - ATEX
Number: KS05 660650-A
Kundeservice
Mai Kaas-Hansen
ATEX-certified Pocket filter for explosive areas.
| Number | KS05 660650-A |
| Name | Pocket filter ISO ePM10 50%/M5, 592x592x500 mm - ATEX |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Low starting pressure drop
Low energy consumption
Available in several filter classes cf. ISO 16890
Product description
Pocket filter certified for use in ATEX areas with gas and dust.
It is qualified for use in hazardous areas in zones 1, 2, 21 and 22. The filter includes an integrated earth cable lug.
It is qualified for use in zones II 2G Ex h IIC Gb and II 2G Ex h IIIB Db.
Specifications
| Applications | Industrial and process ventilation , Explosive environment (ATEX) |
| Width | 592 mm |
| Height | 592 mm |
| Depth | 500 mm |
| Filter frame | Galvanized steel |
| Filter media | Fiberglass |
| Number of pockets | 6 |
| Filterklasse | ISO 16890: ePM10 50% (EN 779: M5) |
| AirFlow [m³/t] | 3400 |
| Final pressure drop recommended | 450 |
| Operating temperature max. [C°] | 50 |
